TRIPLE DOG GT GAS TUNER -- 40410

TRIPLE DOG GT GAS TUNER -- 40410
Free Priority Shipping



Free Priority Shipping


50 State Emission Legal CARB EO# D-512-6 and D-512-7
12/15/11: 2011-2013 F150 Eco Boost V6 Now Supported. Increase up to 42HP and 55TQ at the wheels.
12/15/11: 2011-2013 F150 5.0L/6.2L V8 Now Supported
12/15/11: 2011-2013 SVT Raptor Now Supported
12/15/11: 2011-2013 F250/F350 6.2L V8 Now Supported
List Price:$588.00
Our Price:$499.80
You save $88.20!



Availability : Usually Ships in 24 Hours
Part Number: 40410
Qty:

Description Vehicle Application Chart

Click Here to View the Jeep Wrangler JK Tuning and Features Documentation for More In depth JK Information

Click Here to View the Triple Dog GT User Manual

Click Here to View the Complete Vehicle Application Chart


50 State Emission Legal CARB EO# D-512-6 and D-512-7
12/15/11: 2011-2013 F150 Eco Boost V6 Now Supported. Increase up to 42HP and 55TQ at the wheels.
12/15/11: 2011-2013 F150 5.0L/6.2L V8 Now Supported. Increase up to 17HP and 17TQ at the wheels.
12/15/11: 2011-2013 SVT Raptor Now Supported. Increase up to 22HP and 29TQ at the wheels.
12/15/11: 2011-2013 F250/F350 6.2L V8 Now Supported. Increase up to 19HP and 26TQ at the wheels.

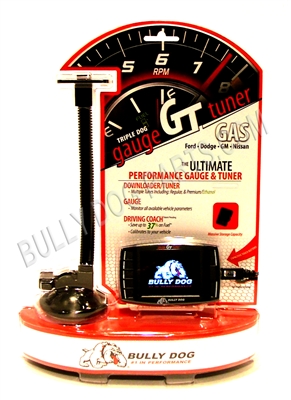

The Triple Dog GT is a "Gauge Tuner". The Triple Dog GT is an all in one chip/downloader and monitor in a compact electronic device. Despite all the features contained in the Triple Dog GT it is very easy to install. Installation simply involves plugging the product into the vehicle diagnostic port under the driver side dash and performing a download to the vehicle ECU. The Triple Dog Gauge Tuner is designed to re-tune your vehicle, monitor performance, display gauge readouts, and help with diagnostic trouble shooting. The GT dramatically improves overall performance of various types of vehicles by increasing horsepower, torque, and driveability. Over twenty different vehicle parameters can be displayed by the Triple Dog GT. This provides the end user with important vehicle information. The Bully Dog GT also acts a vehicle diagnostic code reader and can help you diagnose vehicle malfunctions and clear trouble codes. The Bully Dog GT works on over 50 different vehicle applications.

New to the Bully Dog GT and the Bully Dog product feature line up is the all new patent pending Driving Coach feature. According to outside research studies, drivers can save up to 37% on their monthly fuel bill simply by adopting better driving habits. The Driving Coach feature shows people specifically where their current losses are coming from so they can make adjustments to correct their inefficiencies. It provides audio and visual feedback to instruct a driver into better driving habits, read more about the driving coach feature below.

Features:
  • Supports many different Ford, GM, Dodge, Nissan Vehicles.
  • Added horsepower and torque
  • Improved fuel economy (improvements can vary by driving style and other variables unrelated to tuning)
  • Three different power levels to choose from
  • Easy installation (20-40 minutes)
  • Free internet updates
  • Monitor and display vehicle parameters
  • Full Color display with various color themes available
  • User set daytime and nighttime driving modes
  • Display current gear on vehicles with auto trans.
  • Vehicle specific download features
  • Read and Erase Diagnostic Trouble Codes
  • Display instant fuel economy and trip fuel economy
  • Exclusive Driving Coach feature, Patent Pending

The Driving Coach, Patent Pending Feature :
The Driving Coach will help to educate you on how to drive more efficiently. It coaches you by delivering instant feedback to guide you into using better driving habits with real time visual and audio feedback. Wonder how efficient you drove on specific trip? The Driving Coach can give you a "grade" that you can use to gauge improvements.

Multiple Gauge Display styles :

The GT has four different gauge styles including the driving coach feature, any vehicle parameter can be displayed as a large stylized gauge on the GT screen.

GT Mounting Options:

The GT comes with a custom windsheild mount. In addition the GT mounting socket on the back of the unit is a universal T-socket style mount. This T-socket will accommodate almost any off the shelve mounting style. Various mounting styles can be found at any major electronics retailer.

Feature Dodge
Chrysler
Jeep
Ford
Lincoln
GM Nissan
Infiniti
Engine Tuning
Stock Tune, use other features with stock power
X X X X
Regular Fuel Tune: 10-15 added hp (must use minimum 85 octane fuel)
X
X X X
Premium Fuel Tune: Up to 35 hp added (must use minimum 91 octane fuel)
X X X X
End-User Adjustable Features
Change Speed Limiter
2004-2010 X X X
Calibrate OEM Speedometer for Aftermarket Tire Size
2003-2010 X 1999-2008
4 SPEED AUTO
Calibrate OEM Speedometer for Aftermarket Axle Ratio
1999-2008
4 SPEED AUTO
Transmission Tuning (shift feel)
2004-2008 1999-2008
4 SPEED AUTO
Adjust Transmission Shift Points
2004-2010 2004-2008 1999-2008
4 SPEED AUTO
Engine Rev Limiter
2004-2010 2007.5-2009
X
Remove Wide Open Throttle Governor (Nissan/Infiniti only feature)
5.6L & 4.0L
Increase Throttle Sensitivity (Nissan/Infiniti only feature)
5.6L
Monitoring Capabilities
Pyrometer 1 (exhaust gas temperature)*
X X
Pyrometer 2 (exhaust gas temperature)*
X
Speed (MPH)
X X X X
Engine RPM
X X X X
Coolant Temperature
X X X X
Timing Position
X X X X
Throttle Position (as a percentage)
X X X X
Air Intake Temperature
X X X X
Mass Air Flow
X X X X
Barometer 2006-2010 2007.5-2009
Battery Voltage
2006-2010 X X X
Load X X X X
Injector Pulse Width
2006-2010 X
Transmission Temperature
X X X X
Air/Fuel Ratio
X
Fuel Economy
X X X X
Fuel Flow
X X X X
Vehicle Warnings
Pyrometer 1 (exhaust gas temperature)*
X X X X
Pyrometer 2 (exhaust gas temperature)*
X X X X
Engine Coolant Temperature
X X X X
Transmission Temperature
X X X X
Other Featuers
Read and Erase Diagnostic Trouble Codes (DTC's)
X X X X
Performance Testing (60 ft. Time, 0-60 MPH, 1/8 mile, 1/4 mile)
X X X X
*OPTIONAL BULLY DOG PYROMETER KIT MUST BE INSTALLED FOR PYROMETER READINGS TO WORK. PYROMETER KIT COMES WITH ONE PYROMETER SENSOR. A SECOND PYROMETER SENSOR CAN BE INSTALLED TO HAVE A PYRO 1 AND PYRO 2 READING. PYROMETER KIT AND SECOND SENSOR ARE SOLD SEPARATELY.

Special Features
Dodge/Chrysler
Dodge/Chrysler/Jeep
Dodge/Chrysler/Jeep Nissan/Infiniti
2003-2009 Ram 5.7L
2004-2009 Durango 5.7L
2007-2009 Aspen 5.7L
2006-2010 300C SRT8 6.1L
2010 300C 5.7L
2008-2009 Grand Cherokee 4.7L
2010 Grand Cherokee 5.7L
2006-2010 Grand Cherokee SRT8 6.1L
2010 Jeep Commander 5.7L
2010 Ram 5.7L
2008-2010 Ram 4.7L
2008-2009 Durango 4.7L
2008-2010 Dakota 4.7L
2006-2008 Magnum SRT8 6.1L
2010 Charger 5.7L
Engine Tuning
Auto Door Lock
X X X
Set Head Lamp Delay
X X X
Horn Chirp on Lock
X X X
Light Flash on Lock
X X X
Unlock Driver Door
X X X
Seat Belt Minder Chime
2006-2009
Accessory Delay
2006-2009 X X
Fog Lights w/ High Beams
2006-2009
Daytime Running Lights
2006-2009
Adjust Timing +4 or -8
X
Adjust Idle RPM
X
Wide Band O2
X

2011+ Ford Truck Application Features

EcoBoost 3.5L Raptor 6.2L F150 5.0L F150 6.2L SuperDuty 6.2L
Performance Gains
Horsepower 42 22 17 11 19
Torque(FtLbs) 55 29 17 12 26
Engine Tuning
Stock X X X X X
Tow X X X X X
Regular X X X X X
Premium X X X X X
Downloading Functions
Speed Limiter 55
65
75
99
150
55
65
75
100
150
55
65
75
95
150
55
65
75
95
150
55
65
75
95
150
Calibrate Speedometer 28"-55" 28"-55" 28"-55" 28"-55" 31.3"-34.1"
TPMS Light Threshold
0-115 psi 0-115 psi 0-115 psi 0-115 psi - Disabled 0-115 psi
Monitoring Capabilities
Speed (MPH) X X X X X
Boost X N/A N/A N/A N/A
Engine RPM X X X X X
Coolant Temp X X X X X
Intake Temp X X X X X
Barometer X X X X X
Battery Voltage X X X X X
Transmission Temp X X X X X
Engine Load X X X X X
Timing X X X X X
Mass Air Flow X X X X X
Fuel Economy X X X X X
Fuel Flow X X X X X
Vehicle Warnings
Coolant Temp X X X X X
Transmission Temp X X X X X
Other Features
Read/Erase DTCs X X X X X
Performance Testing X X X X X
Driving Coach X X X X X
