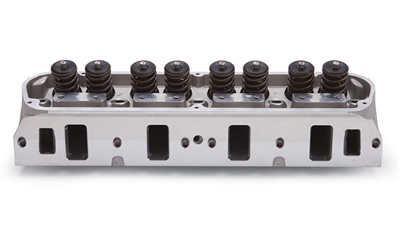

EDELBROCK STREET LEGAL PERFORMER 5.0/ 5.8L CYLINDER HEADS W/ 2.02" INTAKE VALVES FOR S/B FORD (COMPLETE, SINGLE) - 60399


EDELBROCK STREET LEGAL PERFORMER 5.0/ 5.8L CYLINDER HEADS W/ 2.02" INTAKE VALVES FOR S/B FORD (COMPLETE, SINGLE) - 60399



Our Price:$889.50


Part Number: 60399
Qty:

Description

EDELBROCK STREET LEGAL PERFORMER 5.0/ 5.8L CYLINDER HEADS W/ 2.02" INTAKE VALVES FOR S/B FORD (COMPLETE, SINGLE) - 60399

Street Legal Performer 5.0/5.8L with 2.02" intake valves
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS


PERFORMER CYLINDER HEADS
Performer heads are 50-state emissions legal and are designed to fit emissions controlled engines. These heads provide great torque and horsepower up to 5500 rpm.



    STREET LEGAL PERFORMER FORD 5.0L/5.8L FEATURES:
  • Direct bolt-on heads for 1982-95 5.0L and 5.8L V8's
  • 1986 5.0L need pistons notched for clearance
  • These heads accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain
  • 50-state street legal
  • Will not accept rail rockers
  • 5.0L's require head bolt bushing #9680 and either head bolt kit #8552 (7/16") or stock bolts

  • Cylinder Head Specifications:
  • Combustion chamber volume: 60cc
  • Intake runner volume: 170cc
  • Exhaust runner volume: 60cc
  • Intake valve diameter: 2.02"
  • Exhaust valve diameter: 1.60"
  • Valve stem diameter: 11/32"
  • Valve guides: Manganese bronze
  • Deck thickness: 5/8"
  • Valve spring diameter: 1.460"
  • Valve spring maximum lift: .575"
  • Rocker stud: N/A
  • Guideplate: N/A
  • Pushrod diameter: 5/16"
  • Valve angle: 20 degrees
  • Exhaust port location: Stock
  • Spark plug fitment: 14mm x 3/4 reach, gasket seat


INSTALLATION NOTE: 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. Match with Edelbrock head gasket sets. Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
